Dragonfly MC1806 2300KV Mini Motors, Test and Review
« on: July 31, 2014, 01:26:57 PM »

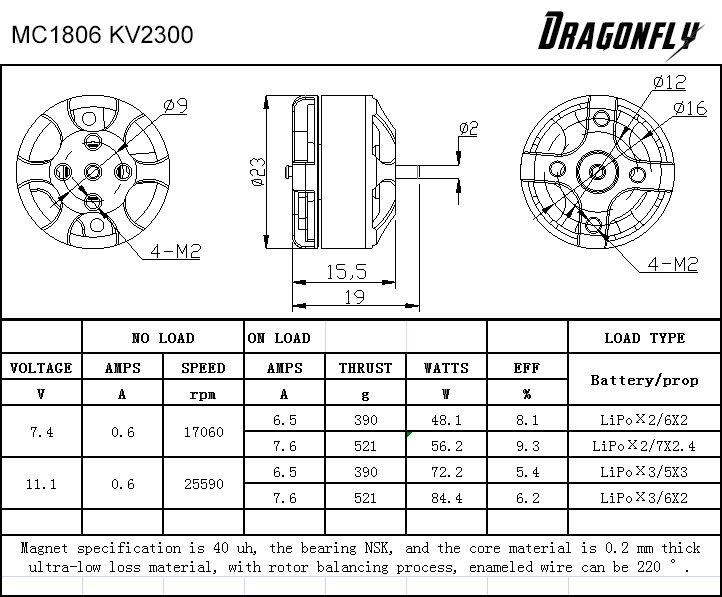

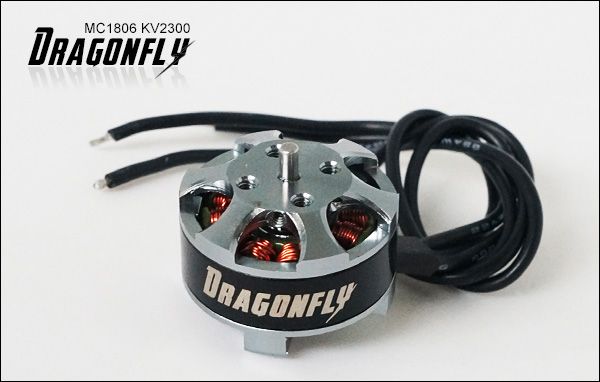

Dragonfly MC1806 KV2300 Mini Motor Review.

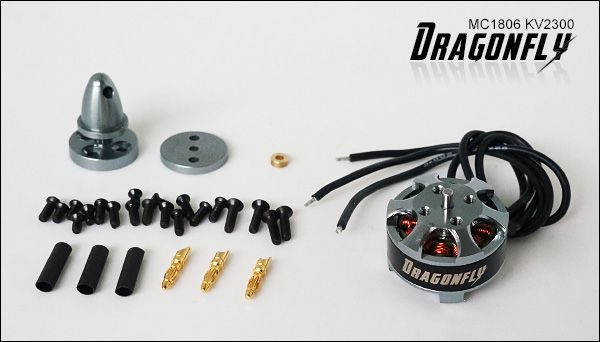

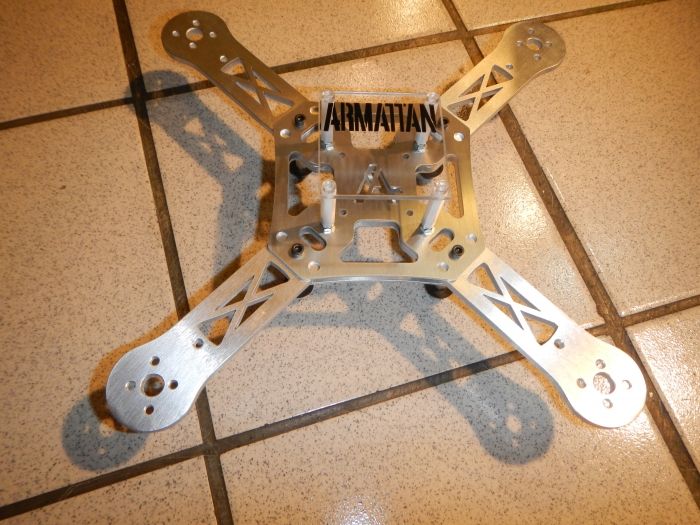

Having received the Dragonfly 1806 Minis the other day we , my buddy rick and I proceeded to affix them to the Armattan 258 CNC frame that was chosen for this test. This frame is all aluminum and very strong weighing in at 160 grams and would make a very good fpv frame in my opinion as it can survive many very hard crashes as it is from Armattan. The frame is able to accommodate up to a 7Ē blade,  so I had no problem when testing with the 6Ē props that were chosen for this motors test.  I had a little trouble with the length of the 2mm bolt that came with the motors as they at first were a tad bit too long and would interrupt the spin of the motors 1 and 3 by making contact with the windings but with a little finagling was able to adjust the bolt to fit and not to make any more contact, after adjusting it flew great!
Here are the specs of the Dragonfly equipped quad configuration: Frame:  Armattan CNC 258, FC: KK2.0 running 1.6+++ Rev 3, Motors: Dragonfly 1806-2300Kv, ESCís: Afro 30A, Props: For this test I went with the 6x4.5 three and two blade props. Battery: Zippy Compact 1800mah 35c 3s..






 Weight of the finished quad is 515.9 grams and the battery weighs in at 155.5 grams.
Rendering the AUW of this flying test quad at 671.4 grams without FPV equipment.
With fpv equipment on board I suspect the AUW of this quad to be at least 700+ grams. I know, a lot of weight, but I suspect that these little Dragonfly 1806 motors seem to be more than up to the task.
Without FPV equipment and with only L.O.S. flying to test, I found that these little power houses were very adequate with power on tap to maneuver the craft with nimble ease, fff was fast. Hovering was just above 50% and punch outs were smooth and powerful. The whole 6 minute flights were just as satisfying as the little craft darted about with authority.  To tell you the truth in the beginning I hadnít much faith in these motors to haul around 670 grams with the ease that it did but after running the first few battery packs through the quad I found that it was no problem either on 2 blade  6x4.5 or on three blade 6x4.5 props.  After each of the flights I immediately checked the motor for heat and found that with both two and three blade props the motors were barely warm after 6 minutes of flying.

In conclusion I am convinced the Dragonfly 1806 would be a nice little motor for fpv flying in the 250mm frame category. Itís power and smooth authority were noticeable right from the start and continued through the life of the battery cycle (6mins).
As a further study of 1806  motors, here is a link to a data sheet of 1806 motors and their performance specs compiled by RC Group members: Mustang7302, Soma, EngineerX and Acom, Great work and thank you for letting me post this data.: http://docs.google.com/spreadsheets/d/1Filoa-oxrM_YK67k9WYXiBzdkPIlYrF-vXjohY2oDLw/pubhtml

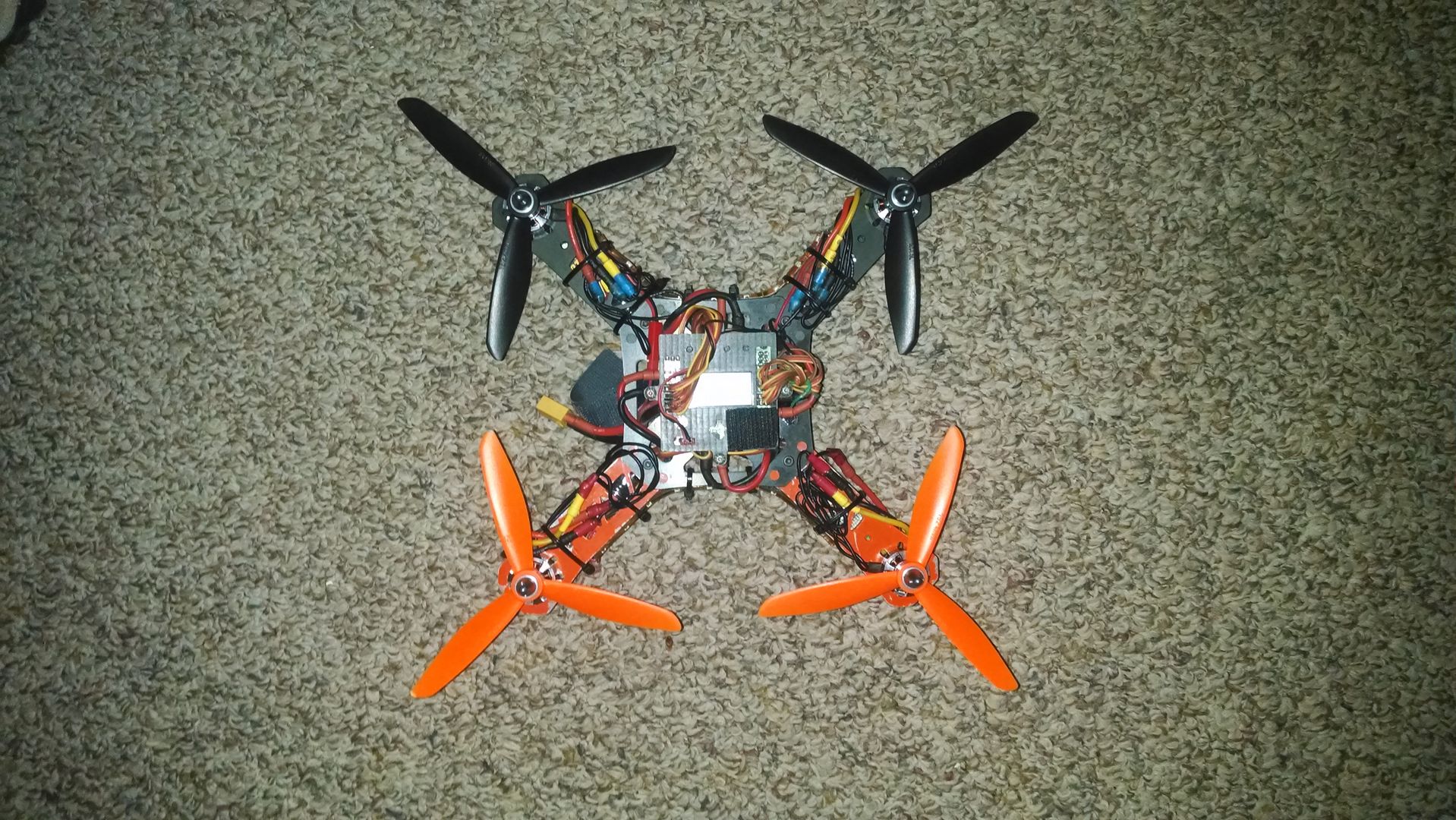

1806 on Armattan 258 with three blade 6x4.5 props
